LINEAR SHORING
GLOBALLY UNIQUE METHOD

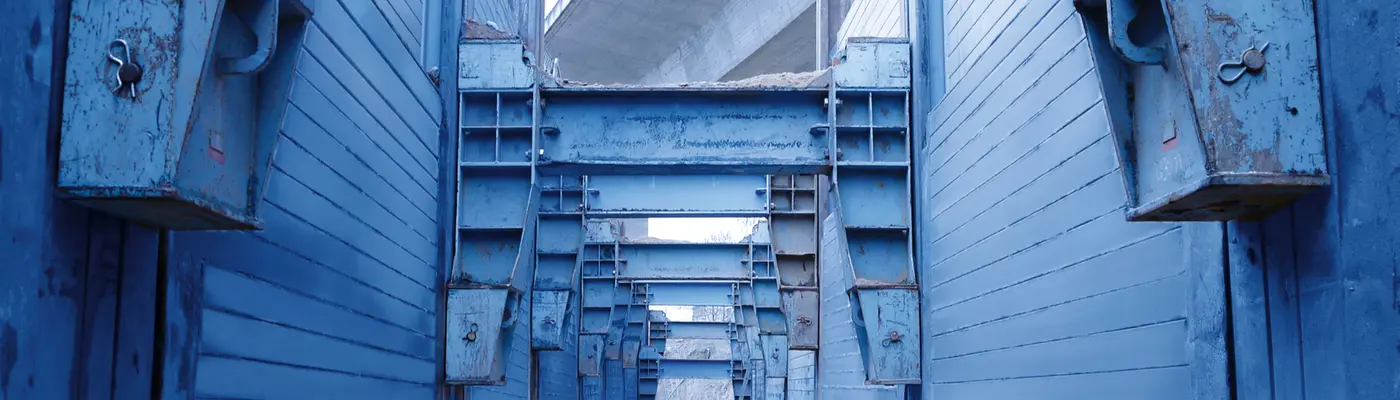

With E+S linear shoring, rigid boogie cars keep the soldiers and thus the shoring panels at an equal distance. Everything stays linearly aligned, always at the same distance from the opposite side, ensuring more effective, faster, and noticeably more cost-effective operations. A major advantage of the system is derived from the special design of the soldiers, as it allows the shoring panels to be pivoted in from the side.

Our innovative trench end shoring boogie car can handle both the compressive forces exerted from the long sides of the trench shoring and the pressure from the front, which means the sheet piles can now lean directly against the boogie car and the pressure is transferred to the shoring.

The E+S linear shoring system can be used as formwork for in-situ concrete and installed with low vibrations, minimizing the impact on the surrounding soil. Existing buildings and traffic flow thus remain largely unimpaired.


ADVANTAGES

    • Our E+S linear shoring offers a wide range of applications as single-rail or stepped variants. Our technical advice ensures that the most economical product is always used in the most economical combination.
    • Low-vibration installation
    • Very little impact on the ground outside the shoring
    • No impairment of buildings or traffic flow
    • Flexible pipe culvert heights, plenty of working space
    • Large widths and depths realizable
    • Suitable as formwork for cast-in-situ concrete
    • Highly suitable for manholes
    • “Open” guidance of the panels prevents them from being jammed with soil
    • Shoring panels can be pivoted in from outside
    E+S SINGLE-RAIL LINEAR SHORING
    E+S SINGLE-RAIL LINEAR SHORING

    Shoring depths up to 4.00 m.

    With the linear system, the shoring panels are installed at depths of up to four meters. For inner-city areas, a particularly low-vibration installation method is chosen so that the impact on the ground is minimized.

    E+S STEPPED LINEAR SHORING
    E+S STEPPED LINEAR SHORING

    Shoring depths from 5.00 - 9.00 m.

    In the stepped system, the shoring panels are held in vertically installed rails so that they can slide past each other. When installed, this results in a stepped shoring system.

    E+S DEEP LINEAR SHORING
    E+S DEEP LINEAR SHORING

    Shoring depth up to 12.00 m.

    Deep linear shoring, in which two shoring units are coupled together, combines the advantages of the linear shoring system into a high-performance functional principle.

    E+S HEAD SHORING AND EXTERNAL BELT ATTACHMENT
    E+S HEAD SHORING AND EXTERNAL BELT ATTACHMENT

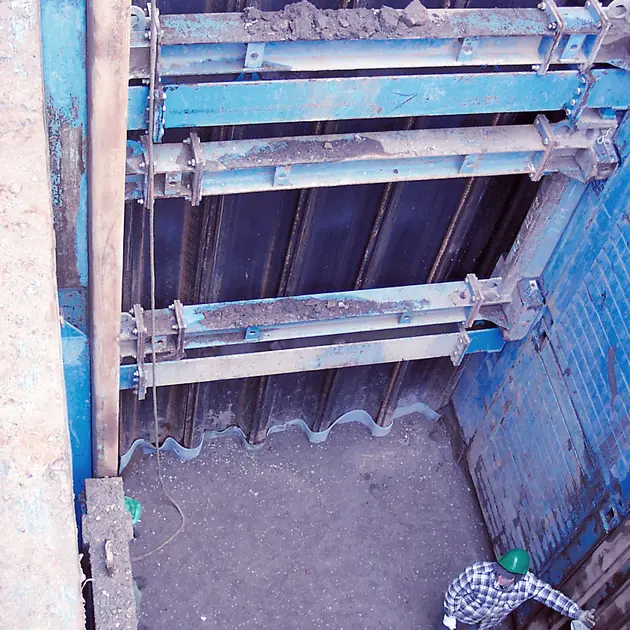

    Head shoring with sheet piles is particularly recommended for press pits. Trench sheeting and sheet piles are used here as an alternative to pre-head shoring with large-area panels.
